Ground Support Equipment (GSE) is the support equipment found at an airport, usually on the ramp, the servicing area by the terminal. This equipment are used to service the aircraft between flights. As the name suggests, ground support equipment are there to support the operations of aircraft whilst on the ground. The role of this equipment plays generally involves ground power operations, aircraft mobility, and cargo/passenger loading operations.
Many airlines subcontract ground handling to an airport or a handling agent, or even to another airline. Ground handling addresses the many service requirements of a passenger aircraft between the time it arrives at a terminal gate and the time it departs for its next flight. Speed, efficiency, and accuracy are important in ground handling services in order to minimize the turnaround time (the time during which the aircraft remains parked at the gate).
Small airlines sometimes subcontract maintenance to a much larger and reputable carrier, as it is a short-term cheaper alternative to setting up an independent maintenance base. Some airlines may enter into a Maintenance and Ground Support Agreement (MAGSA) with each other, which is used by airlines to assess costs for maintenance and support to aircraft.
Most ground services are not directly related to the actual flying of the aircraft, and instead involve other service tasks. Cabin services ensure passenger comfort and safety. They include such tasks as cleaning the passenger cabin and replenishment of on-board consumables or washable items such as soap, pillows, tissues, blankets, and magazines. Security checks are also made to make sure no threats have been left on the aircraft. Airport GSE comprises a diverse range of vehicles and equipment necessary to service aircraft during passenger and cargo loading and unloading, maintenance, and other ground-based operations. The wide range of activities associated with aircraft ground operations lead to an equally wide-ranging fleet of GSE. For example, activities undertaken during a typical aircraft gate period include: cargo loading and unloading, passenger loading and unloading, potable water storage, lavatory waste tank drainage, aircraft refueling, engine and fuselage examination and maintenance, and food and beverage catering. Airlines employ specially designed GSE to support all these operations. Moreover, electrical power and conditioned air are generally required throughout gate operational periods for both passenger and crew comfort and safety, and many times these services are also provided by GSE.
Maps, Directions, and Place Reviews
Non-powered equipment
Dollies
Dollies for loose baggage are used for the transportation of loose baggages, oversized bags, mail bags, loose cargo carton boxes, etc. between the aircraft and the terminal or sorting facility. Dollies for loose baggage are fitted with a brake system which blocks the wheels from moving when the connecting rod is not attached to a tug. Most dollies for loose baggage are completely enclosed except for the sides which use plastic curtains to protect items from weather. In the US, these dollies are called Baggage Cart, but in Europe Baggage Cart means passenger baggage trolleys.
Dollies for unit load device (ULD) and cargo pallets are standard sized flatbed trolley or platform, with many wheels, roller bars or ball bearings protruding above the top surface for easy loading and unloading of ULD and cargo pallets respectively. Since ULD/pallet rest on ball bearings, these dollies are equipped with hinge/locks to secure the position of the ULD/pallet on them during tugging transportation. The aviation industry adopted ULD/pallets to be lightweight containers and supporting platforms respectively, intended to be loaded into aircraft and fly along with their loads, they need to be minimum in weight and thus do not have wheels or strong base structure. Also, the ULD/pallets have stringent dimensional standard following the aircraft cargo bay dimension. Therefore, these dollies are custom designed to complement the ULD/pallet's dimension, hinge/fixture position, weak overall physical strength and transportation need. Advanced dollies for ULD and pallets, such as those used on an airport apron, may have the following specialized facilities.
- Rollers - Dollies have built-in rollers or balls bearings on the deck to assist in the moving of containers or pallets. Advance dollies have two sets of power driven rollers, one set moves the container forward and backward, and the other move it left and right. The precise movement is needed to align the center of gravity of the container to the center of the deck, or else the dollies may turn over when in motion. In addition, the containers or pallets on dollies are secured with built-in locks.
- Revolving platform - Some dollies have a revolving platform to facilitate rotating the ULDs to the correct orientation before transferring them onto a cargo conveyor belt or ULD/pallet lift leading to the aircraft bay. Some revolving platforms are power assisted.
- Brakes - Dollies have mechanical brakes which automatically lock the dolly wheels when the towbar is in the parked (vertical) orientation, and automatically release the dolly wheels when the towbar is in the towing (horizontal) orientation. No explicit manual locking/unlocking action by the operator is needed.
Dollies fleet management is an issue specific to the airport ground support equipment industry. Dollies are not inexpensive consumable equipment like a hand trolley. Dollies are numerous (thousands) in a large airport apron. An airport usually has more than one dolly fleet operator, using dollies not greatly different in appearance, and each operator is using many types of dollies simultaneously. Apron is a large area that using direct eyesight to find an item is not easy. Dolly in operation needs frequent detachment and re-attachment from the tug and other dollies. It is not access controlled (it does not need a car key be used, like an automobile). It is not always supervised by the same driver (any tractor can come to pick up any dolly and tug them away, sometimes erroneously). As a result of all above factors, dollies do get lost/misplaced on an apron, or at least dollies fleet management is an ongoing burden for ground support equipment operator. Major airports are starting to attach battery power active RFID tags to Dollies to facilitate their fleet management. The active RFID tags can be detected at up to 100m away in open space from the fixed RFID reader antenna, which can be mounted at the aircraft loading bridges. The RFID tag report the dolly's facility number as well as the "battery weak" and "strong collision" status, making management of the RFID tags (and thus the associated dolly) easier.
Chocks
Chocks are used to prevent an aircraft from moving while parked at the gate or in a hangar. Chocks are placed in the front ('fore') and back ('aft') of the wheels of landing gear. They are made out of hard wood or hard rubber. Corporate safety guidelines in the US almost always specify that chocks must be used in a pair on the same wheel and they must be placed in physical contact with the wheel. Therefore, "chocks" are typically found in pairs connected by a segment of rope or cable. The word "chock" is also used as a verb, defined as the act of placing chocks in front and back of the wheel.
Aircraft Tripod Jack
They are used to support a parked aircraft to prevent their tail from drooping or even falling to the ground. When the passengers in the front get off an aircraft, the aircraft becomes tail heavy and the tail will droop. Using the jack is optional but not all aircraft need it. When needed, they are tugged to the tail and setup by manpower. Once setup, no supervision to the jack is needed until the aircraft is ready to leave.
Aircraft Service Stairs
Aircraft Services Stair helps the maintenance technician to reach the bottom of aircraft.
Ground Power Unit For Aircraft Video
Powered equipment
Refuelers
Aircraft refuelers can be either a self-contained fuel truck, or a hydrant truck or cart. Fuel trucks are self-contained, typically containing up to 10,000 US gallons of fuel and have their own pumps, filters, hoses, and other equipment. A hydrant cart or truck hooks into a central pipeline network and provides fuel to the aircraft. There is a significant advantage with hydrant systems when compared to fuel trucks, as fuel trucks must be periodically replenished.
Tugs and tractors
The tugs and tractors at an airport have several purposes and represent the essential part of ground support services. They are used to move all equipment that can not move itself. This includes bag carts, mobile air conditioning units, air starters, and lavatory carts.

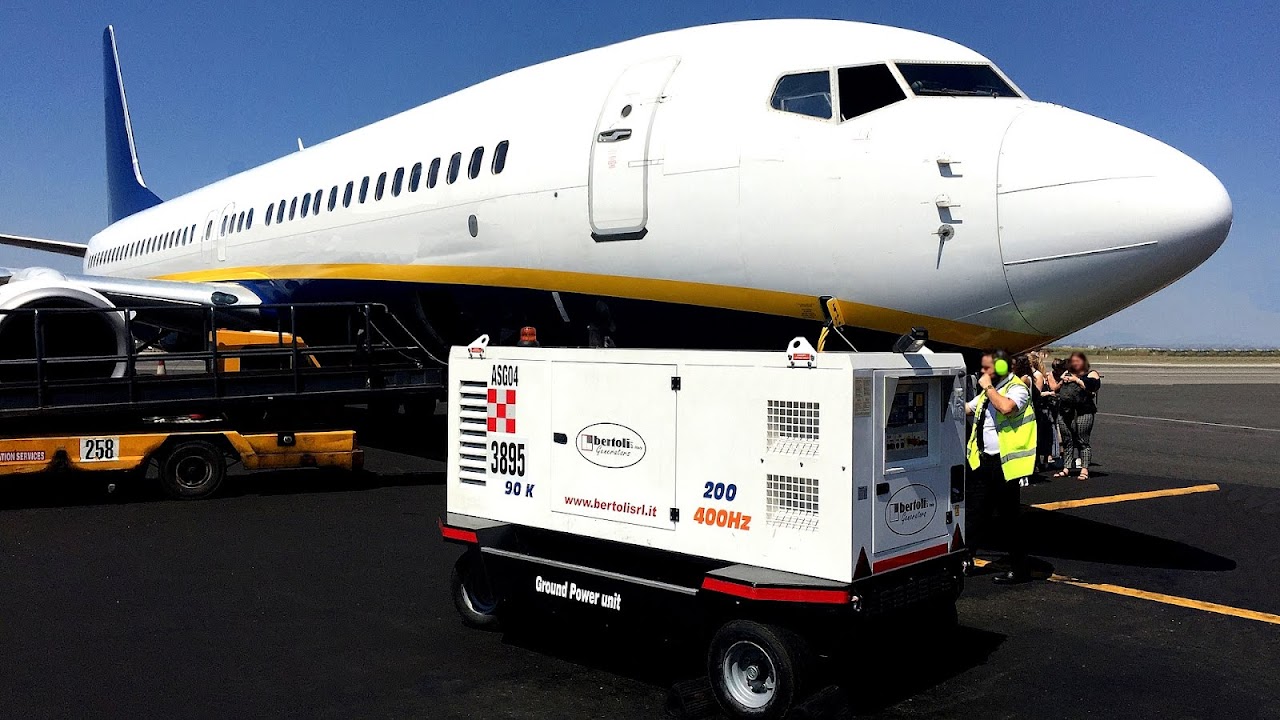

Ground power units
A ground power unit (GPU) is a vehicle capable of supplying power to aircraft parked on the ground. Ground power units may also be built into the jetway, making it even easier to supply electrical power to aircraft. Many aircraft require 28 V of direct current and 115 V 400 Hz of alternating current. The electric energy is carried from a generator to a connection on the aircraft via 3 phase 4-wire insulated cable capable of handling 261 amps (90 kVA). These connectors are standard for all aircraft, as defined in ISO 6858.
A so-called "solid state unit" converts power from AC to DC along with current separation for aircraft power requirements. Solid state units can be supplied stationary, bridge-mounted or as a mobile unit.
Buses
Buses at airports are used to move people from the terminal to either an aircraft or another terminal. The specific term for airport buses that drive on the apron only is apron bus. Apron buses may have a low profile like the Guangtai or Neoplan aircraft buses because people disembark directly to the apron. Some airports use buses that are raised to the level of a passenger terminal and can only be accessed from a door on the 2nd level of the terminal. These odd-looking buses are usually referred to as "people movers" or "mobile lounges". Airport buses are usually normal city buses or specialized terminal buses. Specialized airport buses have very low floor and wide doors on both sides of the bus for most efficient passenger movement and flexibility in depot parking. The biggest producers of airport buses are in China (Weihai, Shenyang, Beijing, Jinhua), Portugal and Slovenia.
Container loader
Container loaders, also known as cargo loaders or "K loaders", are used for the loading and unloading of containers and pallets into and out of aircraft. The loader has two platforms which raise and descend independently. The containers or palettes on the loader are moved with the help of built-in rollers or wheels. There are different container and pallet loaders.
- 3.5 T
- 7 T (standard version, wide-body, universal, high)
- 14 T
- 30 T
For military transport planes special container and pallet loaders are used. Some military applications use airborne loaders, which are transportable within the transport plane itself. Container and pallet loaders are mainly produced in France, Germany, Latvia, Spain, Canada, Brazil, Japan, China, and the United States.
Transporters
Transporters are cargo platforms constructed so that, beside loading and unloading containers, they can also can transport the cargo. These transporters are not typically used in the United States.
Air Start Unit (ASU)
An Air Start Unit is a device used to start the aircraft's engines when the aircraft's APU is not operational. There are three primary types of these devices that exist currently: a stored air cart, a gas turbine based unit, and a diesel engine driven screw compressor unit. All three devices create a source of high pressure air to start the aircraft engines. Typically one or two hoses are connect to these units, with the largest aircraft engines requiring three.
Potable water trucks
Potable water trucks are special vehicles that provide reliability and consistency in the delivery of quality water to an aircraft. The water is filtered and protected from the elements while being stored on the vehicle. A pump in the vehicle assists in moving the water from the truck to the aircraft.
Lavatory service vehicles
Lavatory service vehicles empty and refill lavatories onboard aircraft. Waste is stored in tanks on the aircraft until these vehicles can empty them and remove the waste. After the tank is emptied, it is refilled with a mixture of water and a disinfecting concentrate, commonly called 'blue juice'. Instead of a self-powered vehicle, some airports have lavatory carts, which are smaller and must be pulled by tug.
Catering vehicle
Catering includes the unloading of unused food and drink from the aircraft, and the loading of fresh food and drinks for passengers and crew. The meals are typically delivered in standardized carts. Meals are prepared mostly on the ground in order to minimize the amount of preparation (apart from chilling or reheating) required in the air.
The catering vehicle consists of a rear body, lifting system, platform and an electro-hydraulic control mechanism. The vehicle can be lifted up, down and the platform can be moved to place in front of the aircraft.
In-flight food is prepared in the flight kitchen which is a completely HACCP certified facility where food is made in sterile and controlled environments. The packed food is then placed in trollies and wheeled into the Catering truck at the flight kitchen, which can be located within a 5 km radius of the airport.
Thereon the vehicle drives to the airport and is parked in front of the plane. The stabilizers are deployed and the van body is lifted. The platform can be fine controlled to move left-right as well as in-out so that it is aligned with the door correctly.
The body is made of insulated panels and is capable of maintaining temperatures of 0 degrees by means of refrigeration unit.
A special higher type of catering truck has been designed for the Airbus A380 because of its unique height.
Belt loaders
Belt loaders are vehicles with conveyor belts for unloading and loading of baggage and cargo onto aircraft. A belt loader is positioned at the door sill of an aircraft hold (baggage compartment) during operation. Belt loaders are used for narrowbody aircraft, and the bulk hold of wide body aircraft. Stowing baggage without containers is known as bulk loading.
Passenger boarding steps/stairs
Passenger boarding stairs, sometimes referred to as boarding ramps, stair car or aircraft steps, provide a mobile means to traverse between the aircraft doors and the ground. Because larger aircraft have door sills 5 to 20 feet high, stairs facilitate safe boarding and deplaning. Smaller units are generally moved by being towed or pushed, while larger units are self-powered. Most models have adjustable height to accommodate various aircraft. Optional features may include canopies, heating, supplementary lighting, and a red carpet for VIP passengers.
Pushback tugs and tractors
Pushback tugs are mostly used to push an aircraft away from the gate when it is ready to leave. These tugs are very powerful and because of the large engines, are sometimes referred to as an engine with wheels. Pushback tugs can also be used to pull aircraft in various situations, such as to a hangar. Different size tugs are required for different size aircraft. Some tugs use a tow-bar as a connection between the tug and the aircraft, while other tugs lift the nose gear off the ground to make it easier to tow or push. Recently there has been a push for towbarless tractors as larger airplanes are designed.
De/anti-icing vehicles
The procedure of de/anti-icing, protection from fluids freezing up on aircraft, is done from special vehicles. These vehicles have booms, like a cherry picker, to allow easy access to the entire aircraft. A hose sprays a special mixture that melts current ice on the aircraft and also prevents some ice from building up while waiting on the ground.
Aircraft rescue and firefighting
Aircraft rescue and firefighting (ARFF) is a special category of firefighting that involves the response, hazard mitigation, evacuation and possible rescue of passengers and crew of an aircraft involved in (typically) an airport ground emergency.
